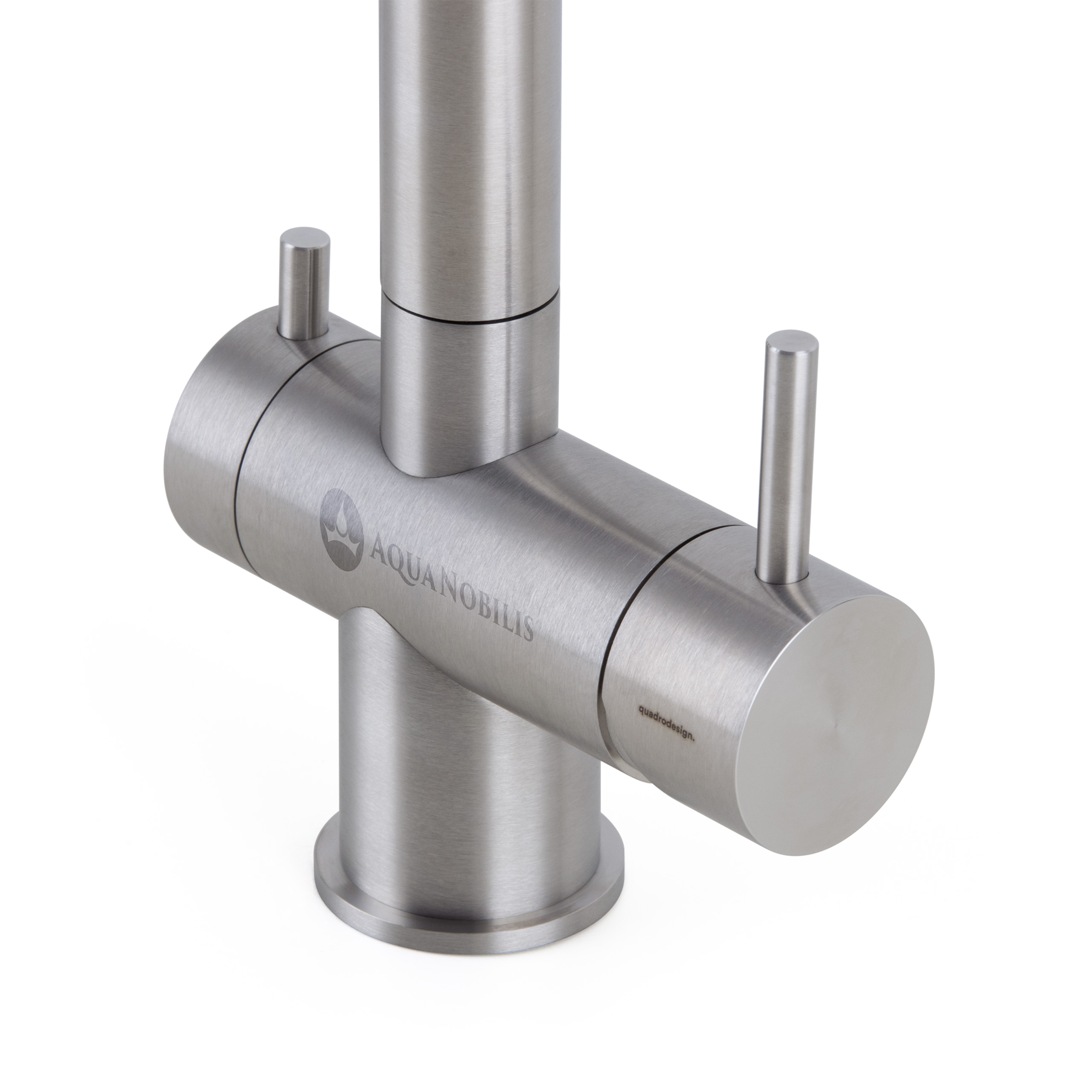

QuadroDesign Idealaqua Inox 383
Product images
Description
- Domestic hot/cold water and filtered water can be dispensed separately from a single tap.
- The housing and spout are made entirely of high-quality brushed AISI 316L stainless steel.

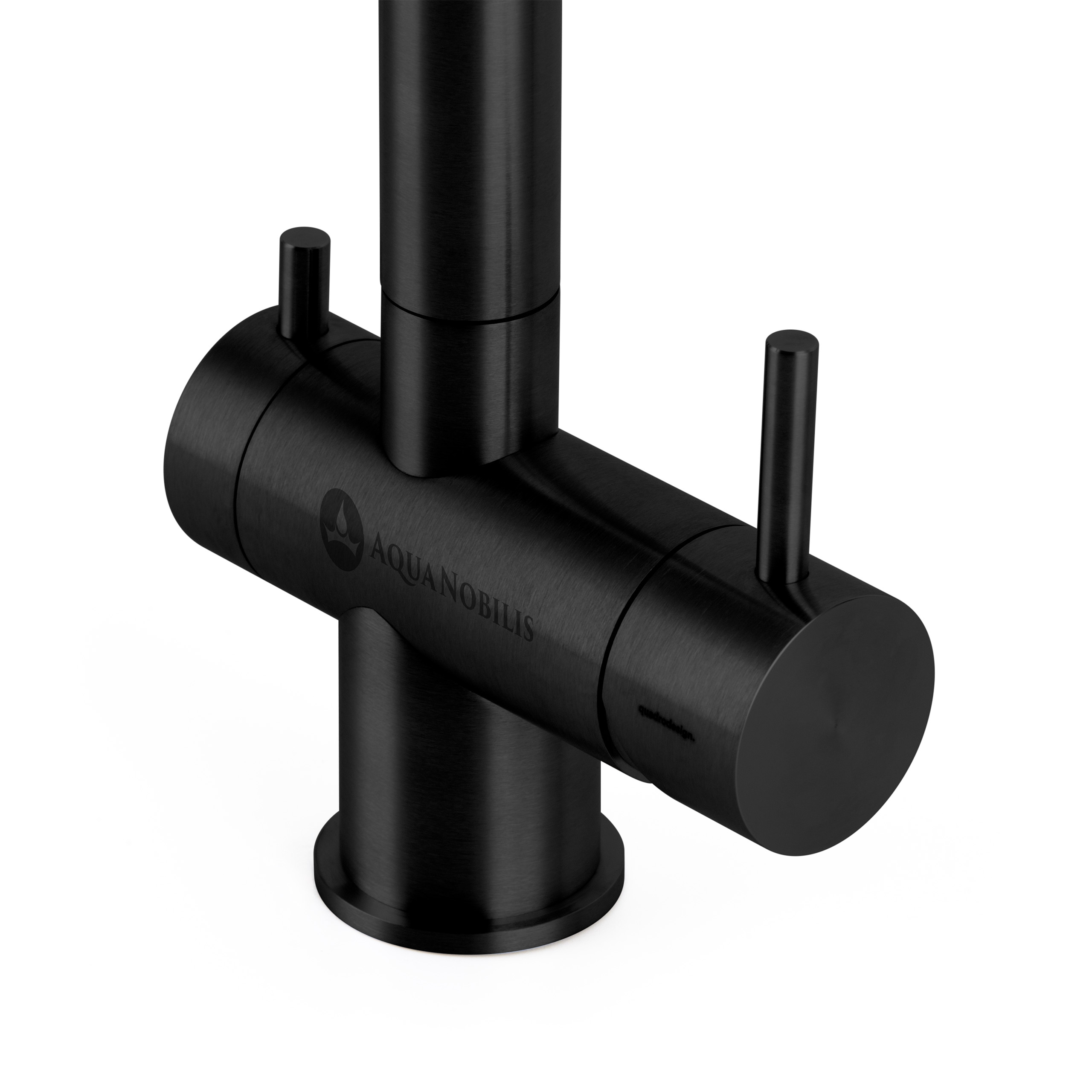

- Available in two finishes: matte stainless steel and black.
- Made in Italy: A faucet with an elegant and timeless design and excellent craftsmanship in the classic “L-shape”.
- Smooth, 360° swivel spout.
- Separate water flow for the filtered water to the outlet.
- Durable ceramic mixers.
- Compatible with all three reverse osmosis systems: Phinella Basic, Comfort, and Primus.
- Tap height: 335 mm (from countertop).
- Spout height: 305 mm (from countertop).
Dimensions and further information
| H x W x D: | 335 x 130 x 243 mm |
| Material: | Stainless steel (AISI 316L) |
| Surface finish: | brushed or black |
| Height of the outlet: | 305 mm |
| Distance outlet filtered water – Center axis tap: | 192 mm |
| Distance outlet mixed water – Center axis tap: | 214 mm |
| Distance between the outlets: | 22 mm |
| Diameter of the hole in the worktop/sink: | 35 mm |
| Max. worktop thickness: | 65 mm |
| Length of the connection hoses: | 400 mm |
